Spatio-Temporal Estimation and Prediction for Censored/Missing Responses.

StempCens

The goal of StempCens is to estimates the parameters of a censored or missing data in spatio-temporal models using the SAEM algorithm (Delyon, Lavielle, and Moulines 1999). This algorithm is a stochastic approximation of the widely used EM algorithm and an important tool for models in which the E-step does not have an analytic form. Besides the expressions obtained to estimate the parameters to the proposed model, we include the calculations for the observed information matrix using the method developed by Louis (1982). To examine the performance of the fitted model, case-deletion measure are provided (see also Cook 1977; Zhu et al. 2001). Moreover, it computes the spatio-temporal covariance matrix and the effective range for an isotropic spatial correlation function.

Installation

You can install the released version of StempCens from CRAN with:

install.packages("StempCens")

Functions

StempCens package provides five functions:

• CovarianceM: Computes the spatio-temporal covariance matrix for balanced data.
• EffectiveRange: Computes the effective range for an isotropic spatial correlation function.
• EstStempCens: Returns the maximum likelihood estimates of the unknown parameters.
• PredStempCens: Performs spatio-temporal prediction in a set of new spatial locations for fixed time points.
• CrossStempCens: Performs cross-validation, which measure the performance of the predictive model on new test dataset.
• DiagStempCens: Returns measures and graphics for diagnostic analysis.

Example

This is a basic example which shows you how to solve a problem using functions EstStempCens (parameter estimation) and PredStempCens (prediction in new locations):

library(StempCens)
# Initial parameter values
beta <- c(-1,1.50)
phi  <- 5;    rho    <- 0.60
tau2 <- 0.80; sigma2 <- 2
# Simulating data
n1 <- 17    # Number of spatial locations
n2 <- 5     # Number of temporal index
set.seed(12345)
x.co   <- round(runif(n1,0,10),9)  # X coordinate
y.co   <- round(runif(n1,0,10),9)  # Y coordinate
coord  <- cbind(x.co,y.co)         # Cartesian coordinates without repetitions
coord2 <- cbind(rep(x.co,each=n2),rep(y.co,each=n2)) # Cartesian coordinates with repetitions
time   <- as.matrix(seq(1,n2))     # Time index without repetitions
time2  <- as.matrix(rep(time,n1))  # Time index with repetitions
x1     <- rexp(n1*n2,2)
x2     <- rnorm(n1*n2,2,1)
x      <- cbind(x1,x2)   # Covariates
media  <- x%*%beta
# Covariance matrix
Ms  <- as.matrix(dist(coord))   # Spatial distances
Mt  <- as.matrix(dist(time))    # Temporal distances
Cov <- CovarianceM(phi,rho,tau2,sigma2,Ms,Mt,0.50,"pow.exp")
# Data
require(mvtnorm)
y    <- as.vector(rmvnorm(1,mean=as.vector(media),sigma=Cov))
data <- data.frame(coord2,time2,y,x)
names(data) <- c("x.coord","y.coord","time","yObs","x1","x2")
# Splitting the dataset
local.est  <- coord[-c(4,13),]
data.est   <- data[data$x.coord%in%local.est[,1]&data$y.coord%in%local.est[,2],]
data.valid <- data[data$x.coord%in%coord[c(4,13),1]&data$y.coord%in%coord[c(4,13),2],]
# Censored
perc <- 0.10
y    <- data.est$yObs
aa   <- sort(y);  bb <- aa[1:(perc*nrow(data.est))]; cutof <- bb[perc*nrow(data.est)]
cc   <- matrix(1,nrow(data.est),1)*(y<=cutof)
y[cc==1] <- cutof
data.est <- cbind(data.est[,-c(4,5,6)],y,cc,data.est[,c(5,6)])
names(data.est) <- c("x.coord","y.coord","time","yObs","censored","x1","x2")
# Estimation
y   <- data.est$yObs
x   <- cbind(data.est$x1,data.est$x2)
cc  <- data.est$censored
time2  <- matrix(data.est$time)
coord2 <- data.est[,1:2]
LI <- y; LI[cc==1] = -Inf    # Left-censored
LS <- y
est_teste <- EstStempCens(y, x, cc, time2, coord2, LI, LS, init.phi=3.5,
                          init.rho=0.5, init.tau2=1, kappa=0.5, type.S="pow.exp",
                          IMatrix=TRUE, M=20, perc=0.25, MaxIter=300, pc=0.20)
# Prediction
locPre  <- data.valid[,1:2]
timePre <- matrix(data.valid$time)
xPre    <- cbind(data.valid$x1,data.valid$x2)
pre_teste <- PredStempCens(est_teste, locPre, timePre, xPre)

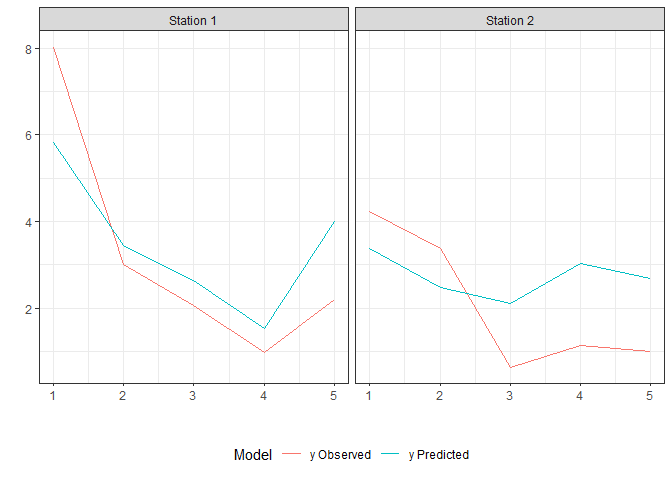

library(ggplot2)
Model   <- rep(c("y Observed","y Predicted"),each=10)
station <- rep(rep(c("Station 1", "Station 2"),each=5),times=2)
xcoord1 <- rep(seq(1:5),4)
ycoord1 <- c(data.valid$yObs,pre_teste$predValues)
data2   <- data.frame(Model,station,xcoord1,ycoord1)
ggplot(data=data2,aes(x=xcoord1,y=ycoord1)) + geom_line(aes(color=Model)) +
facet_wrap(station~.,nrow=2) + labs(x="",y="") + theme(legend.position="bottom")

For the diagnostic analysis in the EstStempCens function the parameter input IMatrix needs to be TRUE.

diag <- DiagStempCens(est, type.diag="location", diag.plot = TRUE, ck=1)
