Description
Generate Venn Diagrams with Items Listed in the Sections.
Description
Generate Venn diagrams from two or three sets, displaying the overlapping items as lists in the appropriate sections. The lists can be split into columns or shortened for large sets and the plot is generated using 'ggplot2' allowing further customisations.
README.md
VennItem
Generate Venn diagrams from two or three sets, displaying the overlapping items as lists in the appropriate sections. The lists can be split into columns or shortened for large sets and the plot is generated using ‘ggplot2’ allowing further customisations.
Installation
You can install the development version of VennItem from GitHub with:
# install.packages("pak")
pak::pak("microbialman/VennItem")
Examples

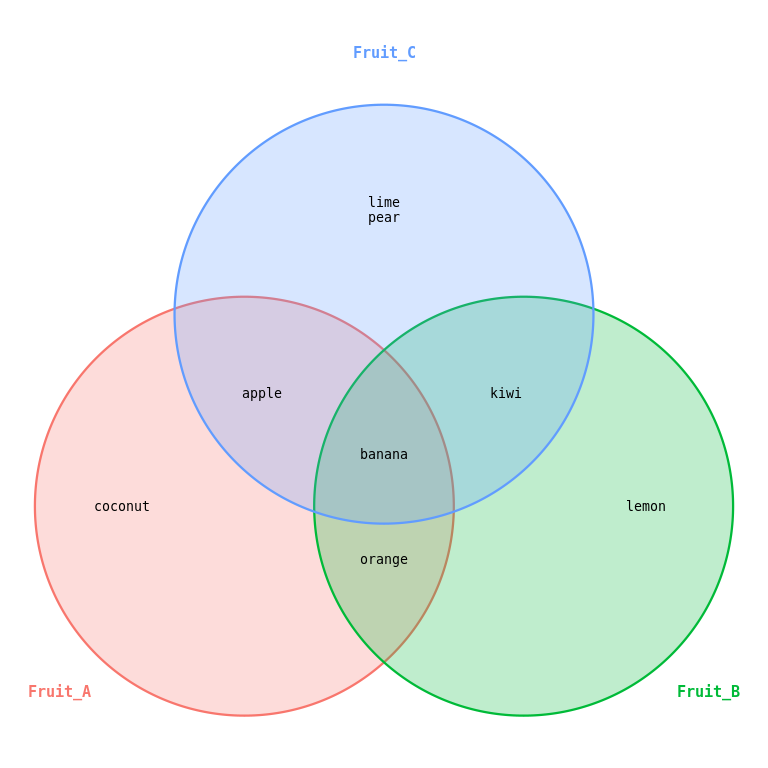

Basic example showing two small sets.
library(VennItem)
sets <- list(Fruit_A = c("apple","banana","coconut","orange"), Fruit_B = c("banana","kiwi","lemon","orange"), Fruit_C = c("banana","kiwi","apple","pear","lime"))
vennItem(sets, set_label_size = 4)

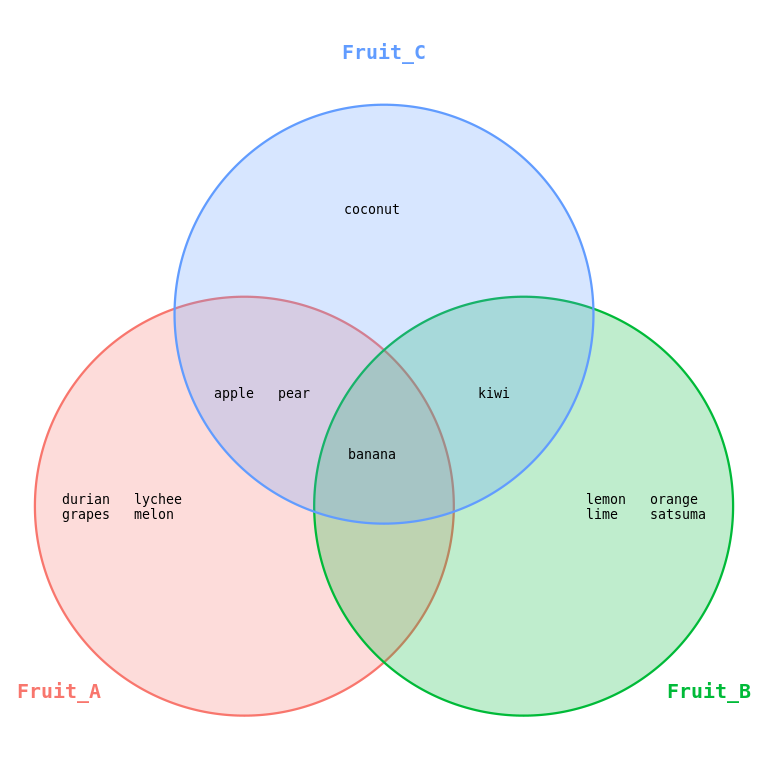

Example of larger sets showing column formatting ability.
big_sets <- list(Fruit_A = c("apple","banana","durian","lychee","grapes","pear","melon"),
Fruit_B = c("banana","kiwi","satsuma","orange","lemon","lime"),
Fruit_C = c("banana","kiwi","apple","pear","coconut"))
vennItem(big_sets, ncol_items = 2)

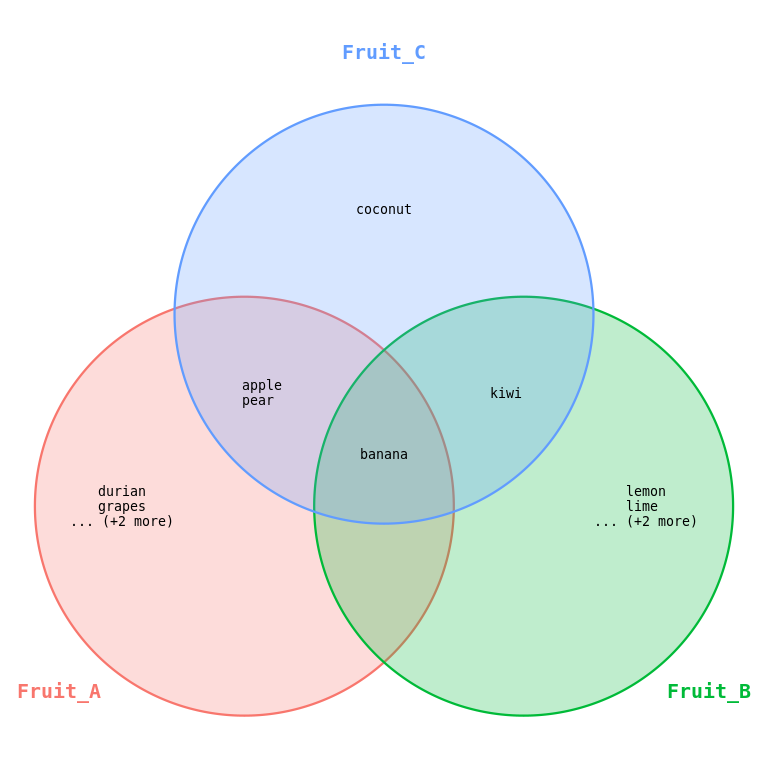

Example of larger sets showing shortening.
big_sets <- list(Fruit_A = c("apple","banana","durian","lychee","grapes","pear","melon"),
Fruit_B = c("banana","kiwi","satsuma","orange","lemon","lime"),
Fruit_C = c("banana","kiwi","apple","pear","coconut"))
vennItem(big_sets, max_items_per_region = 2)

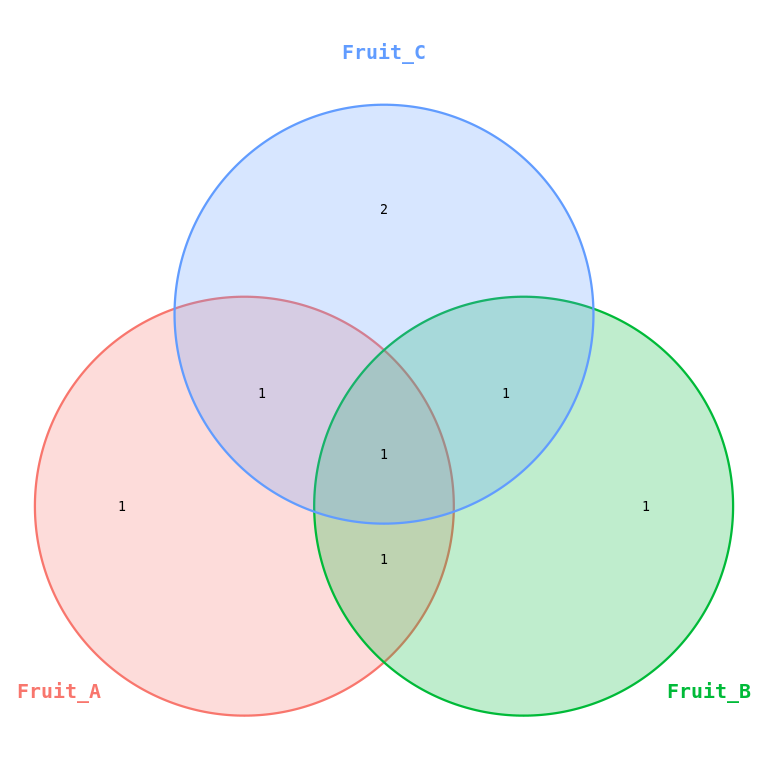

Example showing basic numbering of set size.
sets <- list(Fruit_A = c("apple","banana","coconut","orange"), Fruit_B = c("banana","kiwi","lemon","orange"), Fruit_C = c("banana","kiwi","apple","pear","lime"))
vennItem(sets, max_items_per_region = 0)
