Explore the R Package Dependencies on the Comprehensive R Archive Network (CRAN) Like Repositories.

pkggraph

Explore various dependencies of a package(s) (on the Comprehensive R Archive Network Like repositories).

Utilities

Start with init() which gets metadata from a CRAN like repository.

The package offers four functions:

1. get_dependencies(): Get direct or indirect dependencies of a set of packages at desired depth (as a dataframe).
2. get_neighborhood(): Get both direct and indirect of a set of packages at desired depth (as a dataframe).
3. as_graph(): Get metadata embedded igraph equivalent of a dependency dataframe.
4. plot(): Static plot of dependency graph.

Example

suppressPackageStartupMessages(library("dplyr"))
#> Warning: package 'dplyr' was built under R version 4.4.3
init()
#> ℹ Fetching package metadata from repositories ...
#> ℹ Computing package dependencies ...
#> ✔ Done!

# what does `mboost` package do
packmeta |> filter(Package == "mboost") |> pull(Description) |> cat()
#> Functional gradient descent algorithm
#>   (boosting) for optimizing general risk functions utilizing
#>   component-wise (penalised) least squares estimates or regression
#>   trees as base-learners for fitting generalized linear, additive
#>   and interaction models to potentially high-dimensional data.
#>   Models and algorithms are described in <doi:10.1214/07-STS242>,
#>   a hands-on tutorial is available from <doi:10.1007/s00180-012-0382-5>.
#>   The package allows user-specified loss functions and base-learners.

# Get direct 'import' dependencies of `mboost` two levels deeper
get_dependencies("mboost", level = 2, relation = "Imports")
#> # A tibble: 53 × 3
#>    pkg_1  relation pkg_2
#>    <chr>  <fct>    <chr>
#>  1 BayesX Imports  coda
#>  2 BayesX Imports  colorspace
#>  3 BayesX Imports  interp
#>  4 BayesX Imports  sf
#>  5 BayesX Imports  sp
#>  6 BayesX Imports  splines
#>  7 Matrix Imports  grid
#>  8 Matrix Imports  grid
#>  9 Matrix Imports  lattice
#> 10 Matrix Imports  lattice
#> # ℹ 43 more rows

# Get neighborhood (direct and indirect) dependencies (of all types) of `mboost` one level deeper
get_neighborhood("mboost", level = 1)
#> # A tibble: 219 × 3
#>    pkg_1                     relation pkg_2
#>    <chr>                     <fct>    <chr>
#>  1 FDboost                   Depends  mboost
#>  2 InvariantCausalPrediction Depends  mboost
#>  3 TH.data                   Depends  MASS
#>  4 TH.data                   Depends  survival
#>  5 boostrq                   Depends  mboost
#>  6 boostrq                   Depends  parallel
#>  7 boostrq                   Depends  stabs
#>  8 catdata                   Depends  MASS
#>  9 censored                  Depends  survival
#> 10 expectreg                 Depends  BayesX
#> # ℹ 209 more rows

# convert a dependency dataframe to a graph
get_neighborhood("mboost", level = 1) |> as_graph()
#> IGRAPH 148602e DN-- 55 219 --
#> + attr: name (v/c), title (v/c), relation (e/c)
#> + edges from 148602e (vertex names):
#>  [1] FDboost                  ->mboost
#>  [2] InvariantCausalPrediction->mboost
#>  [3] TH.data                  ->MASS
#>  [4] TH.data                  ->survival
#>  [5] boostrq                  ->mboost
#>  [6] boostrq                  ->parallel
#>  [7] boostrq                  ->stabs
#>  [8] catdata                  ->MASS
#> + ... omitted several edges

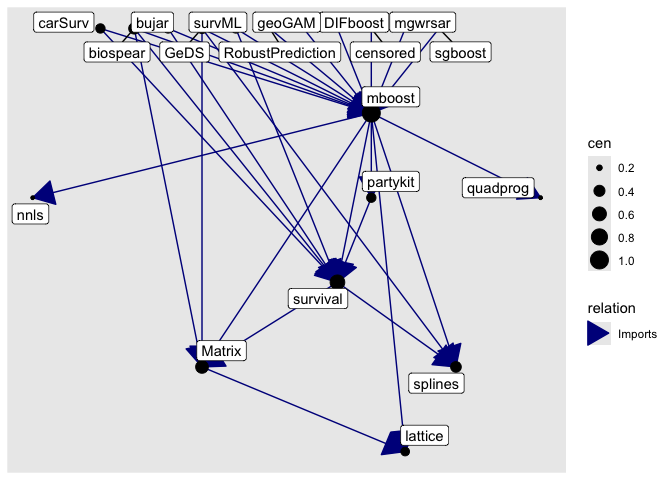

# plot a dependency graph
get_neighborhood("mboost", level = 1, relation = "Imports") |> as_graph() |> plot()

Installation

From CRAN:

pak::pkg_install("pkggraph")

You can install the development version of pkggraph from GitHub with:

# install.packages("pak")
pak::pak("talegari/pkggraph")
