Species Sensitivity Distributions.
ssdtools
ssdtools is an R package to fit and plot Species Sensitivity Distributions (SSD).
SSDs are cumulative probability distributions which are fitted to toxicity concentrations for different species as described by Posthuma et al. (2001). The ssdtools package uses Maximum Likelihood to fit distributions such as the gamma, log-Gumbel (identical to inverse Weibull), log-logistic, log-normal and Weibull to censored and/or weighted data. Multiple distributions can be averaged using Akaike Information Criteria. Confidence intervals on hazard concentrations and proportions are produced by parametric bootstrapping.
Installation
To install the latest version from CRAN
install.packages("ssdtools")
To install the latest development version:
# install.packages("devtools")
devtools::install_github("bcgov/ssdtools")
Introduction
ssdtools provides a data set for several chemicals including Boron.
library(ssdtools)
ssddata::ccme_boron
#> # A tibble: 28 × 5
#> Chemical Species Conc Group Units
#> <chr> <chr> <dbl> <fct> <chr>
#> 1 Boron Oncorhynchus mykiss 2.1 Fish mg/L
#> 2 Boron Ictalurus punctatus 2.4 Fish mg/L
#> 3 Boron Micropterus salmoides 4.1 Fish mg/L
#> 4 Boron Brachydanio rerio 10 Fish mg/L
#> 5 Boron Carassius auratus 15.6 Fish mg/L
#> 6 Boron Pimephales promelas 18.3 Fish mg/L
#> 7 Boron Daphnia magna 6 Invertebrate mg/L
#> 8 Boron Opercularia bimarginata 10 Invertebrate mg/L
#> 9 Boron Ceriodaphnia dubia 13.4 Invertebrate mg/L
#> 10 Boron Entosiphon sulcatum 15 Invertebrate mg/L
#> # ℹ 18 more rows
Distributions are fit using ssd_fit_dists()
fits <- ssd_fit_dists(ssddata::ccme_boron)

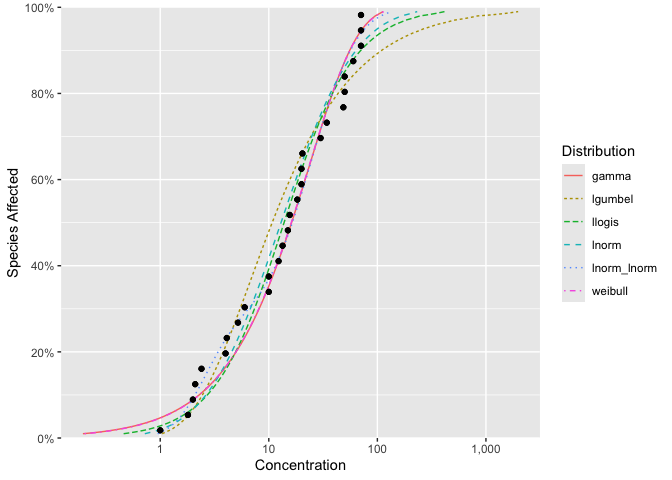

and can be quickly plotted using autoplot
library(ggplot2)
theme_set(theme_bw())
autoplot(fits) +
scale_colour_ssd()
The goodness of fit can be assessed using ssd_gof
ssd_gof(fits)
#> # A tibble: 6 × 9
#> dist ad ks cvm aic aicc bic delta weight
#> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 gamma 0.440 0.117 0.0554 238. 238. 240. 0.005 0.357
#> 2 lgumbel 0.829 0.158 0.134 244. 245. 247. 6.56 0.013
#> 3 llogis 0.487 0.0994 0.0595 241. 241. 244. 3.39 0.066
#> 4 lnorm 0.507 0.107 0.0703 239. 240. 242. 1.40 0.177
#> 5 lnorm_lnorm 0.320 0.116 0.0414 240. 243. 247. 4.98 0.03
#> 6 weibull 0.434 0.117 0.0542 238. 238. 240. 0 0.357
and the model-averaged 5% hazard concentration estimated by parametric bootstrapping using ssd_hc
set.seed(99)
hc5 <- ssd_hc(fits, ci = TRUE, nboot = 100) # 100 bootstrap samples for speed
print(hc5)
#> # A tibble: 1 × 10
#> dist percent est se lcl ucl wt method nboot pboot
#> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <chr> <dbl> <dbl>
#> 1 average 5 1.24 0.741 0.510 3.35 1 parametric 100 1
Model-averaged predictions complete with confidence intervals can also be estimated by parametric bootstrapping using the stats generic predict. To perform bootstrapping for each distribution in parallel register the future backend and then select the evaluation strategy.
doFuture::registerDoFuture()
future::plan(future::multisession)
set.seed(99)
boron_pred <- predict(fits, ci = TRUE)

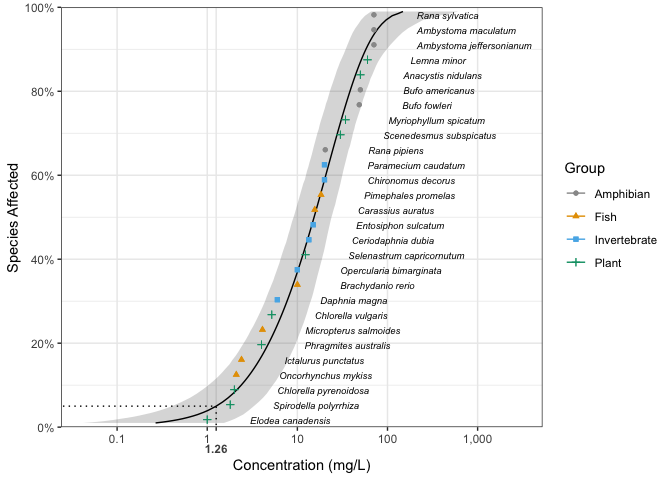

and plotted together with the original data using ssd_plot.
ssd_plot(ssddata::ccme_boron, boron_pred,
shape = "Group", color = "Group", label = "Species",
xlab = "Concentration (mg/L)", ribbon = TRUE
) +
expand_limits(x = 3000) +
scale_colour_ssd()
References
Posthuma, L., Suter II, G.W., and Traas, T.P. 2001. Species Sensitivity Distributions in Ecotoxicology. CRC Press.
Citation
To cite package 'ssdtools' in publications use:
Thorley J, Schwarz C (2018). "ssdtools: An R package to fit Species
Sensitivity Distributions." _Journal of Open Source Software_,
*3*(31), 1082. doi:10.21105/joss.01082
<https://doi.org/10.21105/joss.01082>.
A BibTeX entry for LaTeX users is
@Article{,
title = {ssdtools: {An} {R} package to fit {Species} {Sensitivity} {Distributions}},
author = {Joe Thorley and Carl Schwarz},
journal = {Journal of Open Source Software},
year = {2018},
volume = {3},
number = {31},
pages = {1082},
doi = {10.21105/joss.01082},
}
Information
Get started with ssdtools at https://bcgov.github.io/ssdtools/articles/ssdtools.html.
A shiny app to allow non-R users to interface with ssdtools is available at https://github.com/bcgov/shinyssdtools.
The citation for the shiny app:
Dalgarno, S. 2021. shinyssdtools: A web application for fitting Species Sensitivity Distributions (SSDs). JOSS 6(57): 2848. https://joss.theoj.org/papers/10.21105/joss.02848.
The ssdtools package was developed as a result of earlier drafts of:
Schwarz, C., and Tillmanns, A. 2019. Improving Statistical Methods for Modeling Species Sensitivity Distributions. Province of British Columbia, Victoria, BC.
For recent developments in SSD modeling including a review of existing software see:
Fox, D.R., et al. 2021. Recent Developments in Species Sensitivity Distribution Modeling. Environ Toxicol Chem 40(2): 293–308. https://doi.org/10.1002/etc.4925.
The CCME data.csv data file is derived from a factsheet prepared by the Canadian Council of Ministers of the Environment. See the data-raw folder for more information.
